4G Relay GPS Tracker Car Truck Electric Motorcycle Cut Oil Locator ACC Towed Away Call Alarm

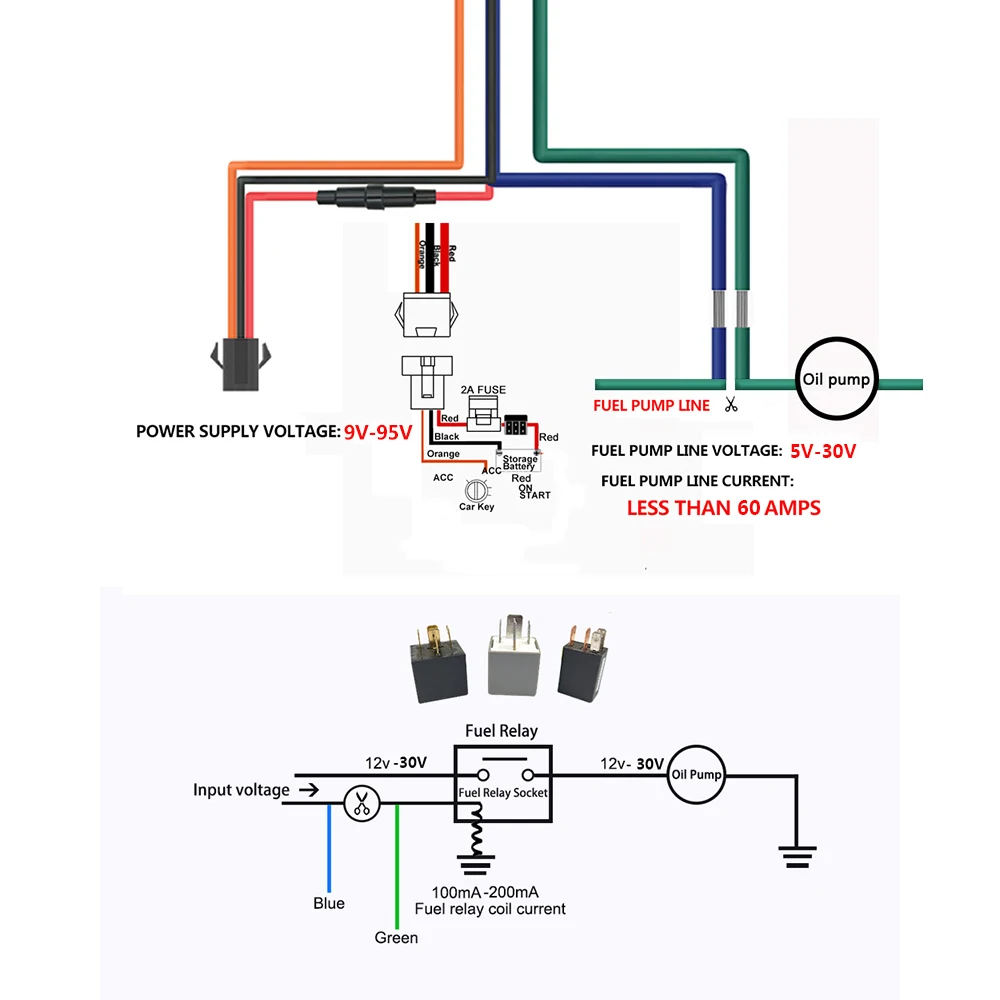

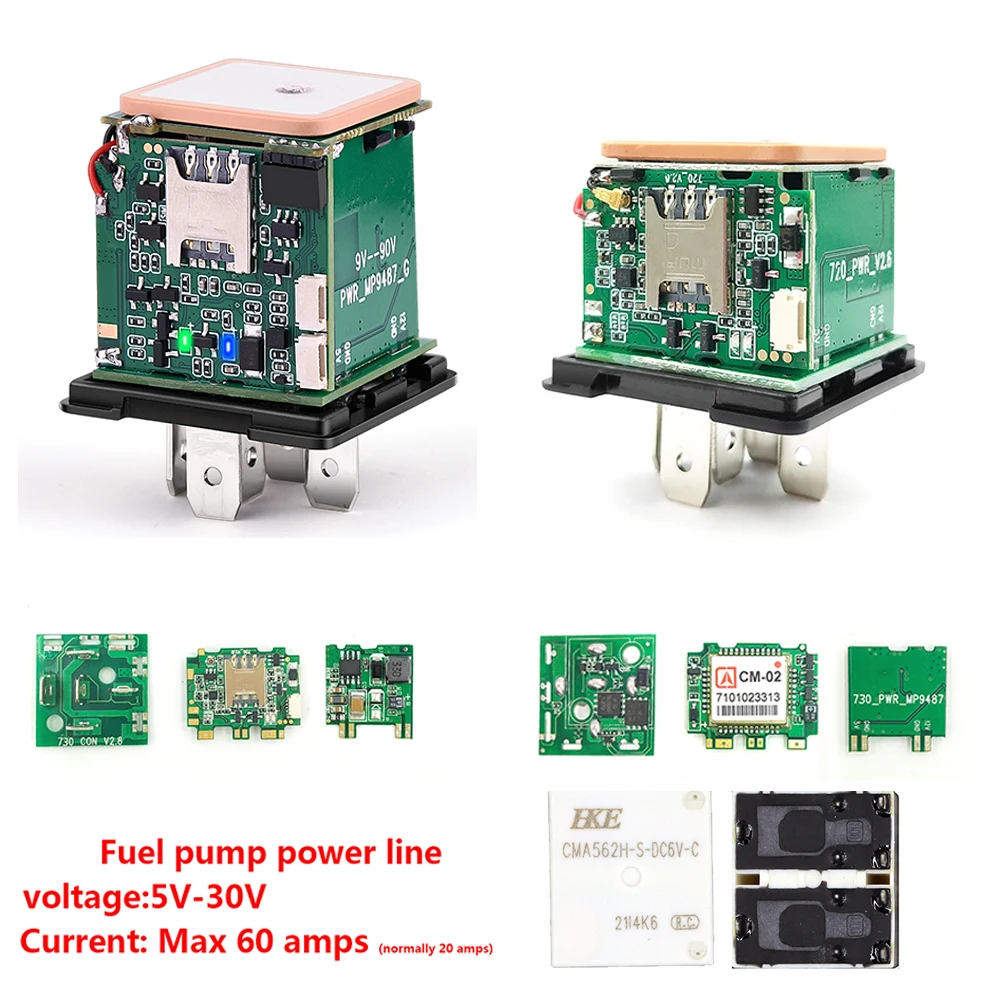

How to activate a device: 2G device 1. Insert a SIM card into the GPS device. (Compatible with 2G band 850/900/1800/1900Mhz, open SMS and Internet data functions) 2. Connect the GPS device to the 12V power supply. 3.GPS device: blinking blue and blinking green. 4. 5. Configure the APN /apn123456 cmnet of the SIM carrier in the GPS device (replace the cmnet with the APN of the SIM card carrier used by the device). Special attention: 4G devices 1. Insert a SIM card into the GPS device. (FDD compatible with 4 g band - LTE - : 1/2/3/4/5/7 8/12/13/18/19/20/25/26/28/66/34/38/39/40/41, opened SMS and Internet data function) 2. Connect the GPS device to the 12V power supply. 3.GPS device: blinking blue and blinking green. 4. 5. Configure the APN/(apn,name,user,psd) of the SIM carrier in the GPS device. (Replace name,user,psd with the APN name,user,psd of the SIM card carrier used by the device.) CJ730 Plus New version April Voltage range upgrade: 9V-95V Increased applicable vehicle range Fuel pump power line voltage:5V-30V, Fuel pump power line Current: Max 60 amps (normally 20 amps). 4G band selection: FDD-LTE-BAND:1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41 GSM:850/900/1800/1900 Dual IP/Dual Protocol GPS multi-mode positioning: Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite) navigation system), GPS in the US, GLONASS in Russia, GALILEO in the EU, QZSS in Japan And satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). It is a true six-in-one multi-mode satellite navigation and positioning device, including 32 tracking channels, which can be connected simultaneously. Receive GNSS signals from six satellite navigation systems and realize joint positioning. Vehicle stopped : ACC off status. Towed away move alarm How to drag away the alarm function: 1. Link ACC, (Need to perform alarm function by monitoring ACC status.) 2. 3. Tow track after the car was stolen ACC:OFF、Motorcycle Car Towed away move Driving trajectory、Track, start, end, ACC status automatic arming function: ACC status monitoring ：ON OFF Intelligent anti-theft system Car start, automatically cancel the anti-theft mode. stop the fire, the positioner automatically enters the anti-t heft mode Multiple location tracking— 24 hour upload Beidou+GPS+LBS multi-mode positioning system makes the acquired position information more accurate and reliable, and rejects all errors. Electric fence Set the security zone. When the car enters or leaves the security zone, the mobile You can keep track of the car dynamics without opening the app. Historical track— 180 days Free storage of the cloud, recording the car's 180-day driving trajectory throughout the anytime, anywhere, it is so capricious. Vehicle vibration alarm When the car is stationary, the positioner automatically enters the fortified state. Equipment removal alarm The device is equipped with a sensitive sensor, and when the device is removed or destroyed, the owner will immediately receive an alarm message. How to use 1. opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up、(blue light flashes, green light flashes,) 2. Set APN: APN123456 CMNET（please use your local APN instead of CMNET，if you do not know the APN content,you should contact your SIM card supplier） 3. Set admin number by sending a SMS command to the SIM card inside device Special Note: Oil pump line search Need professionals. Or auto mechanic repair shop to help find. Power supply, fuel cut control line (1) The standard power supply of this equipment is 10V-50VDC, the red line is the positive pole of the power supply, and the yellow (black) is the negative pole of the power supply. when installing the negative pole of the power supply, please select the grounding or grounding separately, and do not share with other ground lines. (2) The oil cutoff control line (green/blue line) is connected to the oil pump line. Send Command Cut off Oil (The car can't be started, it can only start normally after it needs Restore Oil, and the speed is 60KM/H Cut off Oil - it can go out normally after about 2 minutes.) GPS and Russian GLONASS dual-mode positioning ◆ Real-time tracking ◆against pseudo base-station&detect ◆ Vibration/Displacement/Low battery/Power off/over speed alert ◆ Main power cut off alert ◆ Geo-fence ◆ History Route ◆ Cut and resume oil remotely ◆ AGPS locating Functions and Product parameters （ Relay GPS Tracker CJ730/Off petrol and electricity） Terminal size : 31x 31x 57mm Weight:50g Network: GSM/GPRS Network Band: 850/900/1800/1900Mhz GPS module: MTK2503 GPS sensitivity: -159dBm GPS position accuracy: 10m First positioning time: Cold start 45-120 seconds Warm start: 35 seconds Hot start : 1 second Operating voltage: 10-50V input Battery : Built-in lithium battery 3.7V 110mAh Storage temperature: -40°C to +85°C Operating temperature: -20°C to +55°C Humidity :5% - 95% Non-solidified Faults & The solutions Q：Start up Fail? A：Check the cable connect right or not. Q：The device can not obtain location information? A：Place the unit at the open area to test. Q：How to choose SIM card? A: the SIM card must support GSM&GPRS，and ensure that the card has enough currency and credit. Q: How to use in the foreign countries? A：please set the APN before use，please edit the text “APN123456 CMNET “ and send it to the SIM card of the device，CMNET is Chinese operator’s APN, Replace the corresponding APN when use in other countries, APN details, please consult your local SIM card carrier.
